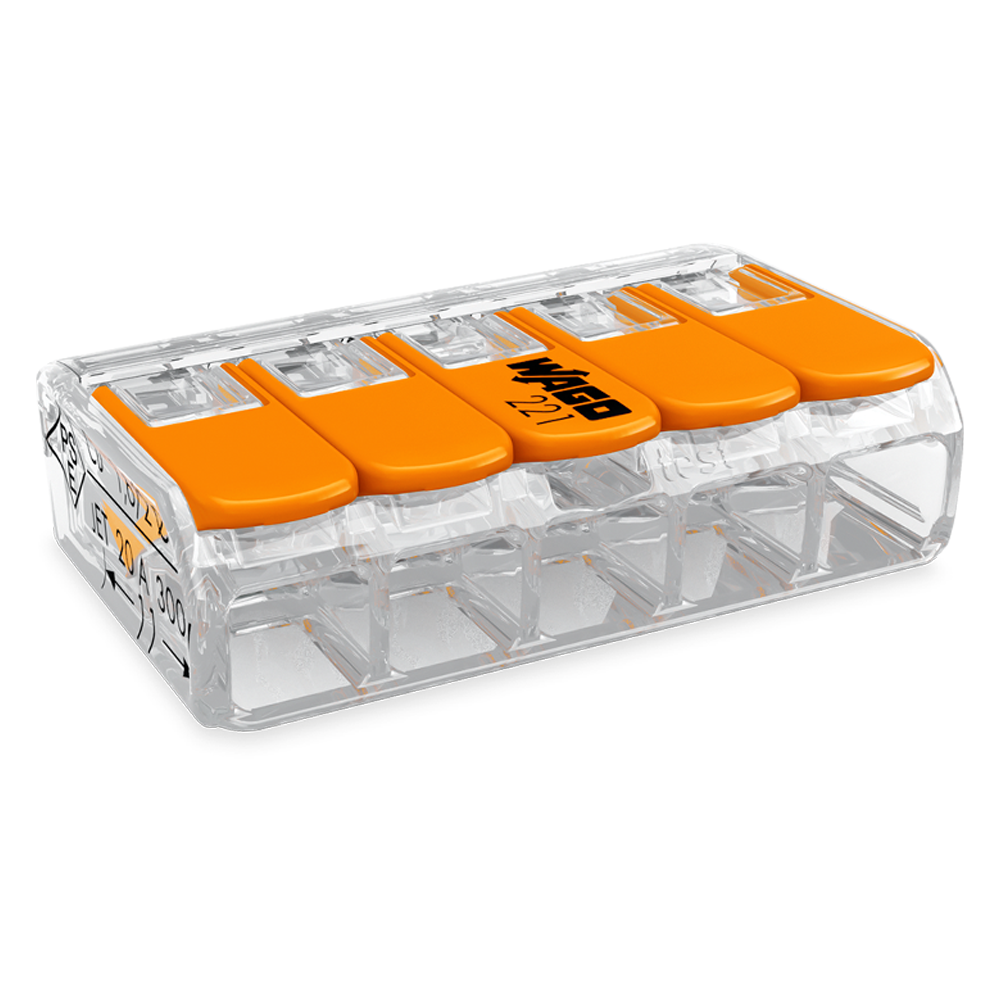

Wago 221-415 | Compact Splicing Connector 5-Conductor Terminal Block

Product Details

SKU

221-415

Vendor
Inventory
$0.77

Out of stock

Shipping Calculated at checkout

Description

WAGO’s 221 Series Splicing Connectors for all types of conductors set new standards. This new series is 40% smaller and even more user-friendly than its successful predecessor, the 222 Series.

These electrical installation “superstars” allow solid, stranded and fine-stranded conductors to be connected faster and more reliably, while conserving precious junction box space. This is made possible not only by their compact design, but also by their transparent housing, easier handling and two test ports.

“Individually Sold” Wago 221-415 Connectors / Cage Clamp technology

Five (5) conductor terminal block with operating levers that can be opened and close easily.
Equipped with hollowed-out grips that hold any connector in place in any situation.
Maximum Operating Temperature 85°C, 5 points of connection, 1 potential
Rated voltage EN (1)[V]: 450V and Rated surge Voltage (1)[V]: 4kV – Normal Current 32A
Connection: Cage Clamp technology
Nominal cross section 1: 4 mm²
Solid size, Stranded, connectable and Fine-stranded wires 1: 1: 0.2 … 4 mm¬≤ / 24 … 12 AWG
Strip length 1: 11 mm / 0.43 in, Offers side-entry wiring
Size Range: Width: 29.9mm / 1.177in – Height: 8.3mm / 0.327in – Length: 18.6mm / 0.732in
Flammability rating per UL 94: V2
Safety information1: in grounded power lines
Makes Day-to-Day Work Much Easier
Due to their extremely small dimensions, WAGO’s COMPACT Splicing Connectors are ideal for space-restricted applications. Installation is made much easier, while providing additional freedom for future expansions.

Another highlight: the transparent housing. Now, you can clearly see if the conductors are connected properly and stripped to the correct length. Furthermore, two easy-to-access test ports, one in the conductor entry direction and one opposite of this, provide extremely convenient testing conditions – even after installation.

WAGO’s new splicing connectors are also easier to use: The operating levers can now be opened and closed using noticeably less force. Lateral hollowed-out grips provide a firm hold on the 221 Series Connectors in any situation.

 | Safety information 1  | in grounded power lines

Specifications

Product Type:
Electrical
