Description
| Connection 1 | G 1/4″ |
| Connection 2 | G 1/4″ |
| Max working pressure | 300.0 MPa |
| Description | Male thread
Connection 1 with 60° internal cone. Connection 2 with 120° external cone. (Max working pressure with rubber metal seal 100 MPa) |

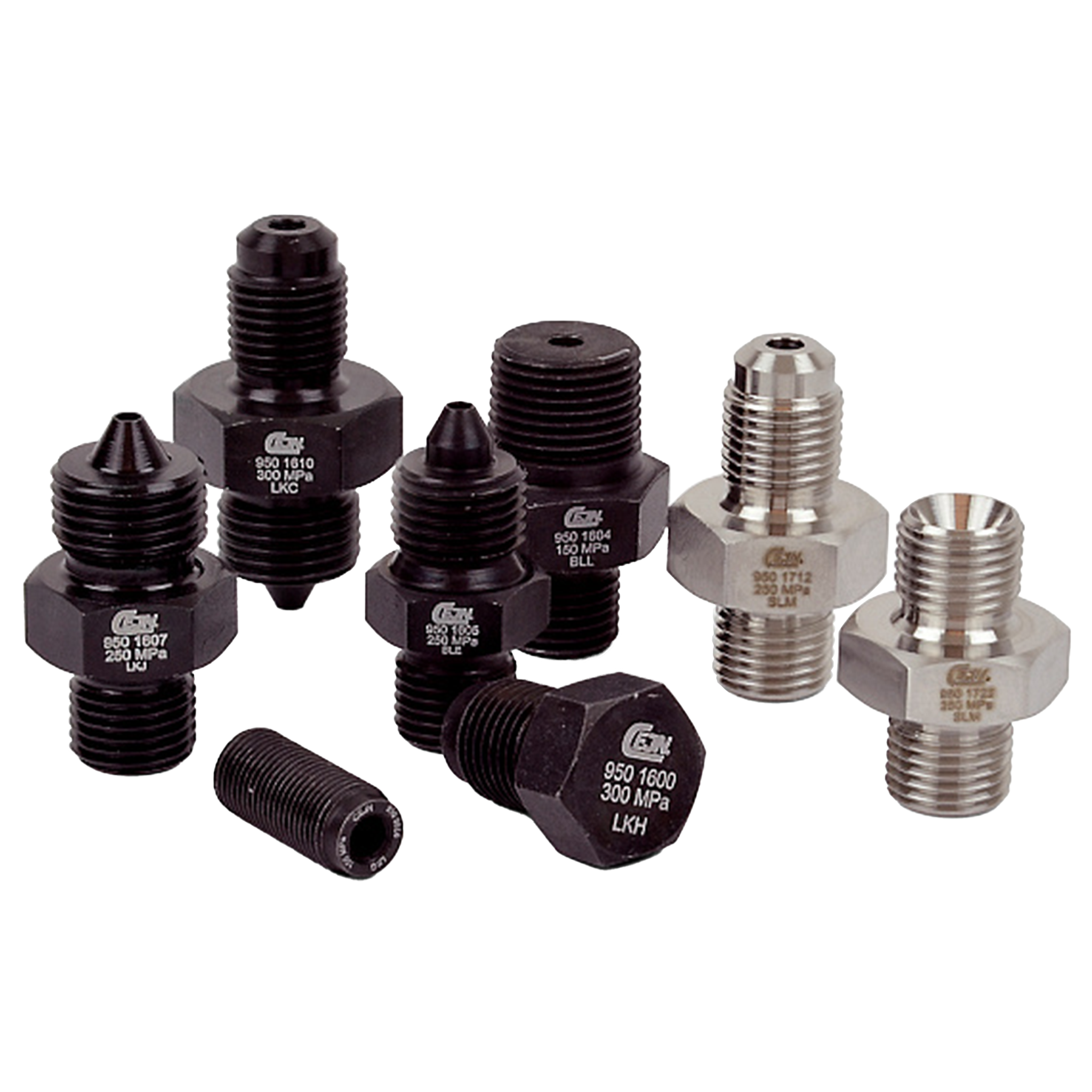

CEJN provides an extensive range of high-pressure hydraulic adapters suitable for most couplings and hoses. All adapters are manufactured from black-zinc plated steel. Working pressure varies between 14,500 PSI (1000 bar) and 43,500 PSI (3000 bar), see product table for data on respective adapters.
| Material | Black zinc-plated steel or stainless steel |
Other connections and sealing material on request. Some part numbers may be subject to minimum order quantities. CEJN reserves the right to make changes without further notification. Thread connections are listed according to ISO Standards. All measurements are in mm.
Specifications
Product Type:
