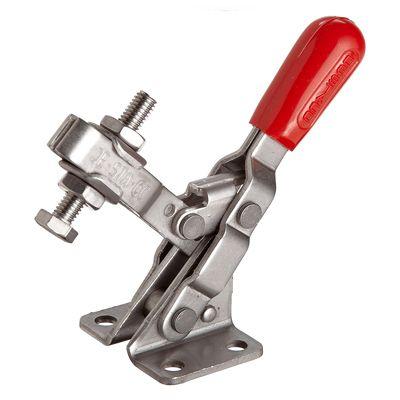

Destaco 201-USS | Vertical Hold-Down Toggle Locking Clamp Stainless Steel

Product Details

SKU

201-USS

Vendor
Inventory
Original price was: $42.58.Current price is: $39.73.

Out of stock

Shipping Calculated at checkout

Description

201-USS Vertical Locking Clamp

Smallest vertical handle hold-down range
Maximum Holding Capacity (N): 560
Maximum Holding Capacity (lbsf): 125
Clamp Arm Length (mm): 25.9
Clamp Arm Length (in): 1.020
Height Under Clamp Arm (mm): 15.7
Height Under Clamp Arm (in): 0.620
Clamp Bar Opening (+10°) (degrees): 100
Handle Opening (+10°): 55
Available: Yes
Standard Material: Stainless Steel
Toggle Lock Plus: No
Accommodates Workpiece Variation: No
Base Mounting Style: Flange
Clamp Arm Style: U-Bar
Handle: Vertical
Service Environment: Normal
Duty Cycle: 1
Product Type: Stainless Steel
Weight: 0.70kg [0.15lbs]
Handle Moves: 60°
Bar Opens: 110°
Additional Notes:

U-bar clamping arm supplied with stainless steel hex head spindle
Application: Welding: Poor/Low, Assembly: Excellent/High, Checking Fixtures: Excellent/High, Machining: Not Recommended, Wood-Working: Excellent/High, Closures: Excellent/High, Food Processing: Fair/Medium

Specifications

Product Type:
Clamp
