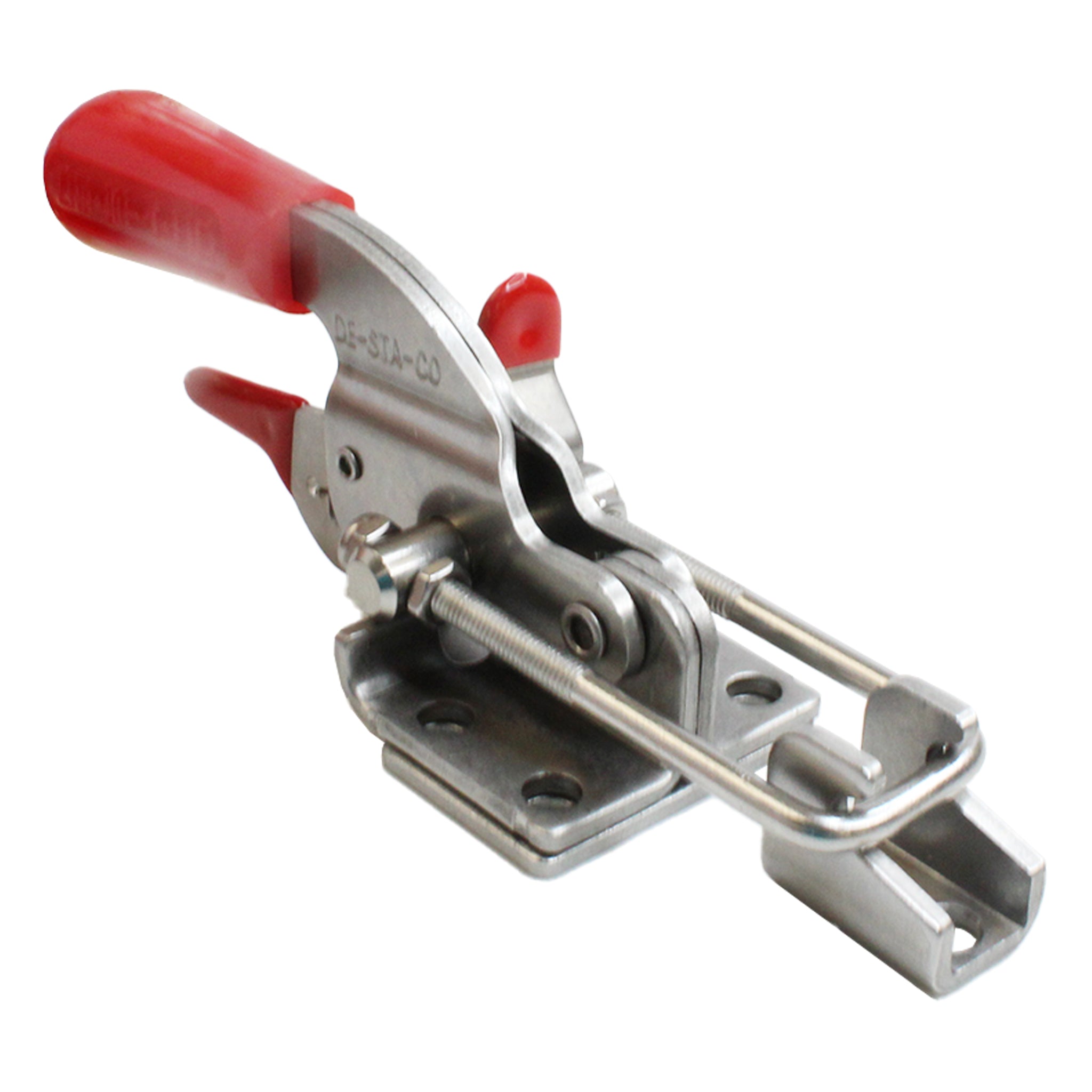

Destaco 331-RSS Pull-Action Latch Clamp

Product Details

SKU

331-RSS

Vendor
Inventory
Original price was: $100.78.Current price is: $90.03.

Out of stock

Shipping Calculated at checkout

Description

331-RSS Pull-Action Latch Clamp

•Model No.: 331-RSS
•Maximum Holding Capacity (N): 3,200
•Maximum Holding Capacity (lbsf): 700
•Drawing Movement (mm): 44.5
•Drawing Movement (in): 1.780
•Hook Adjustable Range (mm): 22.1
•Max Hook Adjustment (in): 0.590
•Ef:Af Exerting Force: Applied Force ((pushing/pulling)): 32:1
•Standard Material: Stainless Steel
•Toggle Lock Plus: Yes
•Base Mounting Style: Flange
•Drawing Movement (mm): 44.5
•Hook Type: U-Hook (Horizontal)
•Latch Plate: 331905
•Latch Plate Supplied?: Yes
•Replacement Hook Assembly: 331915
•Product Type: Standard
•Drawing Movement: 1.75INCH
•Thread: M5x0.8
•Overall Hook Length: 3.00INCH
•Weight: 0.25kg (0.55lbs)

Additional Features:

•Destaco Toggle Lock Plus versions of the models 323, 331, and 341
•Ideal for latching applications on molds, doors, lids, access covers
•Stainless Steel
•Patented Thumb Control Lever provides one-handed operation
•Supplied with threaded U-hooks for easy adjustment
•Latch plate included
•With Toggle Lock Plus

Specifications

Product Type:
Clamp
