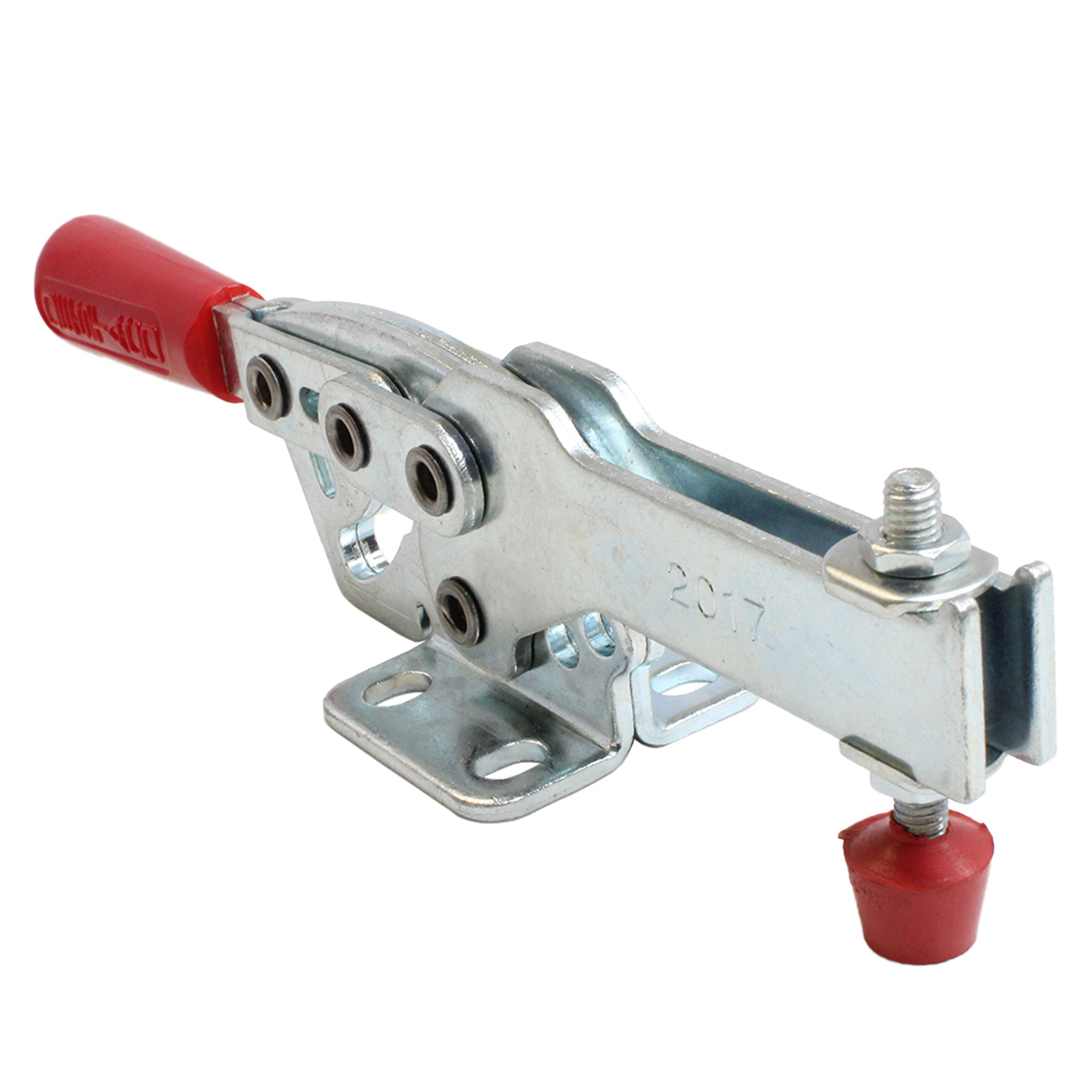

Destaco 2017-U Horizontal Hold-Down Toggle Locking Clamp

Product Details

SKU

2017-U

Vendor
Inventory
Original price was: $42.01.Current price is: $36.41.

Out of stock

Shipping Calculated at checkout

Description

2017-U Horizontal Hold-Down Toggle Locking Clamp

  • Increased handle clearance reduces pinch points.
  • Flanged base
  • Adjustable pre-load
  • Part No.: 2017-U
  • Series: 2017
  • Maximum Holding Capacity (N): 2,500
  • Maximum Holding Capacity (lbsf): 560
  • Clamp Arm Length (mm): 64.3
  • Clamp Arm Length (in): 2.530
  • Height Under Clamp Arm (mm): 24.9
  • Height Under Clamp Arm (in): 0.980
  • Clamp Bar Opening (+10°) (degrees): 73
  • Handle Opening (+10°): 69
  • Available: Yes
  • Standard Material: Steel
  • Toggle Lock Plus: No
  • Accommodates Workpiece Variation?: No
  • Base Mounting Style: Flange
  • Clamp Arm Style: U-Bar
  • Handle: Horizontal
  • Service Environment: Normal
  • Duty Cycle: 2
  • Product Type: Standard
  • Weight (kg): 0.44
  • Weight (lb): 0.97
Application: Welding: Fair/Medium, Assembly: Excellent/High, Checking Fixtures: Excellent/High, Machining: Poor/Low, Wood-Working: Excellent/High, Closures: Excellent/High, Food Processing: Not Recommended

Specifications

Product Type:
Clamp
