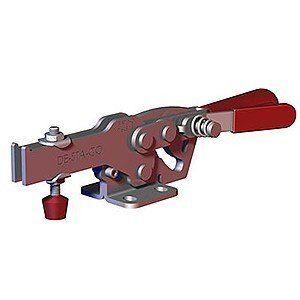

Destaco 2017-UR | Horizontal Hold-Down Toggle Locking Clamp

Product Details

SKU

2017-UR

Vendor
Inventory
Original price was: $71.25.Current price is: $63.65.

Out of stock

Shipping Calculated at checkout

Description

2017-UR Horizontal Hold-Down Toggle Locking Clamp

Flanged or straight base versions
With Toggle-Lock Plus feature
Adjustable pre-load
Part No.: 2017-UR
Series: 2017
Maxmum Holding Capacity (N): 2,500
Maximum Holding Capacity (lbsf): 560
Clamp Arm Length (mm): 64.3
Clamp Arm Length (in): 2.530
Height Under Clamp Arm (mm): 24.9
Height Under Clamp Arm (in): 0.980
Clamp Bar Opening (+10°) (degrees): 73
Handle Opening (+10°): 69
Available: Yes
Standard Material: Steel
Toggle Lock Plus: Yes
Accommodates Workpiece Variation: No
Base Mounting Style: Flange
Clamp Arm Style: U-Bar
Handle: Horizontal
Service Environment: Normal
Duty Cycle: 2
Product Type: Standard
Weight (kg): 0.44
Weight (lb): 0.97
Application: Welding: Fair/Medium, Assembly: Excellent/High, Checking Fixtures: Excellent/High, Machining: Poor/Low, Wood-Working: Excellent/High, Closures: Excellent/High, Food Processing: Not Recommended

Specifications

Product Type:
Clamp
