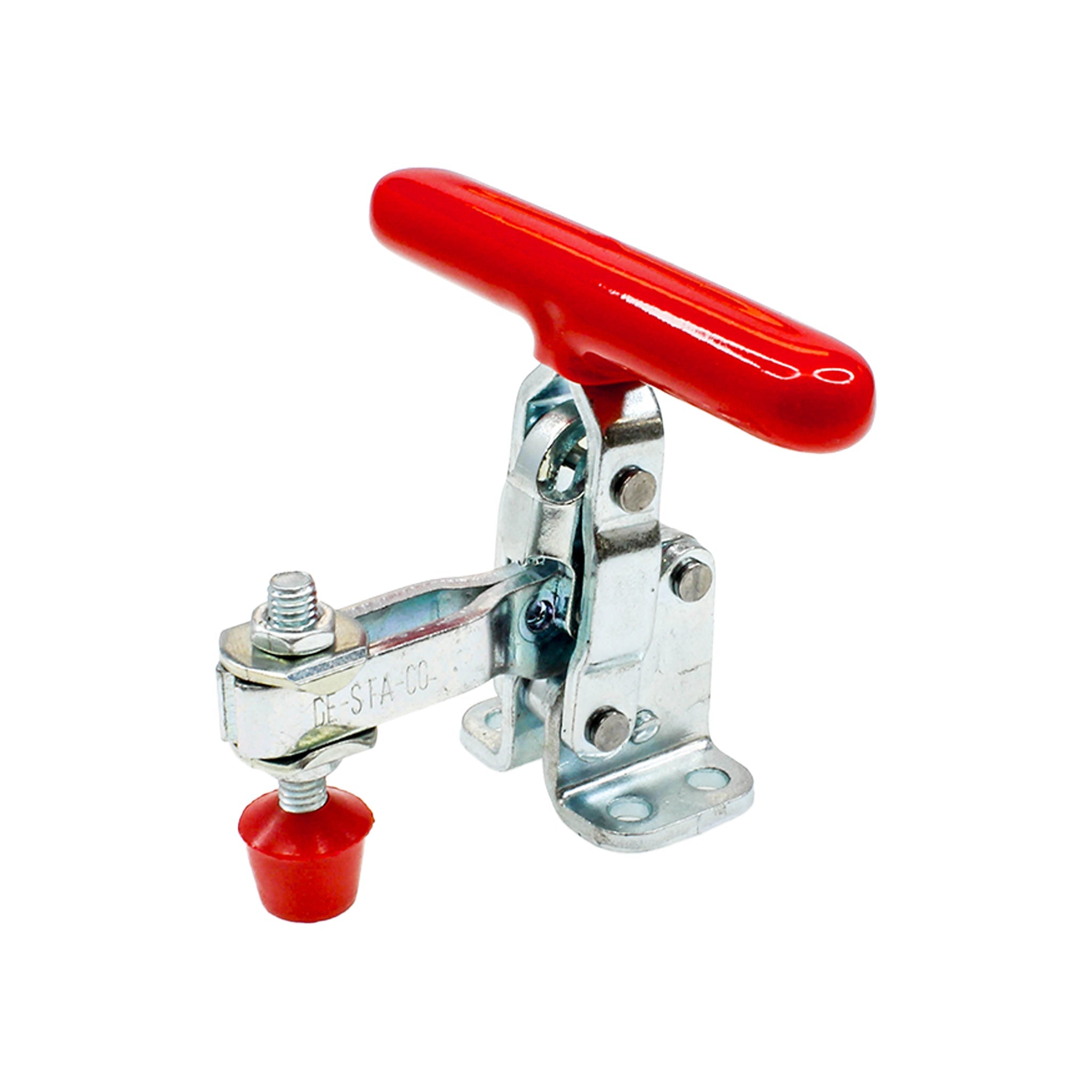

Destaco 202-TU | T-Handle Hold-Down Toggle Locking Clamp

Product Details

SKU

202-TU

Vendor
Inventory
Original price was: $36.86.Current price is: $34.43.

Out of stock

Shipping Calculated at checkout

Description

202-TU Vertical Hold-Down Toggle Locking Clamp

Supplied with neoprene spindle
Low profile T-handle
Model No.: 202-TU
Maximum Holding Capacity (N): 890
Maximum Holding Capacity (lbsf): 200
Clamp Arm Length (mm): 43.9
Clamp Arm Length (in): 1.730
Height Under Clamp Arm (mm): 23.9
Height Under Clamp Arm (in): 0.940
Clamp Bar Opening (+10°) (degrees): 105
Handle Opening (+10°): 65
Standard Material: Steel
Toggle Lock Plus: No
Accommodates Workpiece Variation: No
Base Mounting Style: Straight
Clamp Arm Style: U-Bar
Handle: T-Handle
Service Environment: Normal
Duty Cycle: 1
Product Type: Standard
No.: 52021
Handle Moves: 64°
Bar Opens: 104°
Weight: 0.17(kg) [0.37 lbs]
Spindle Part No.: 202208-M

Application: Welding: Poor/Low, Assembly: Excellent/High, Checking Fixtures: Excellent/High, Machining: Not Recommended, Wood-Working: Excellent/High, Closures: Excellent/High, Food Processing: Fair/Medium

Specifications

Product Type:
Clamp
