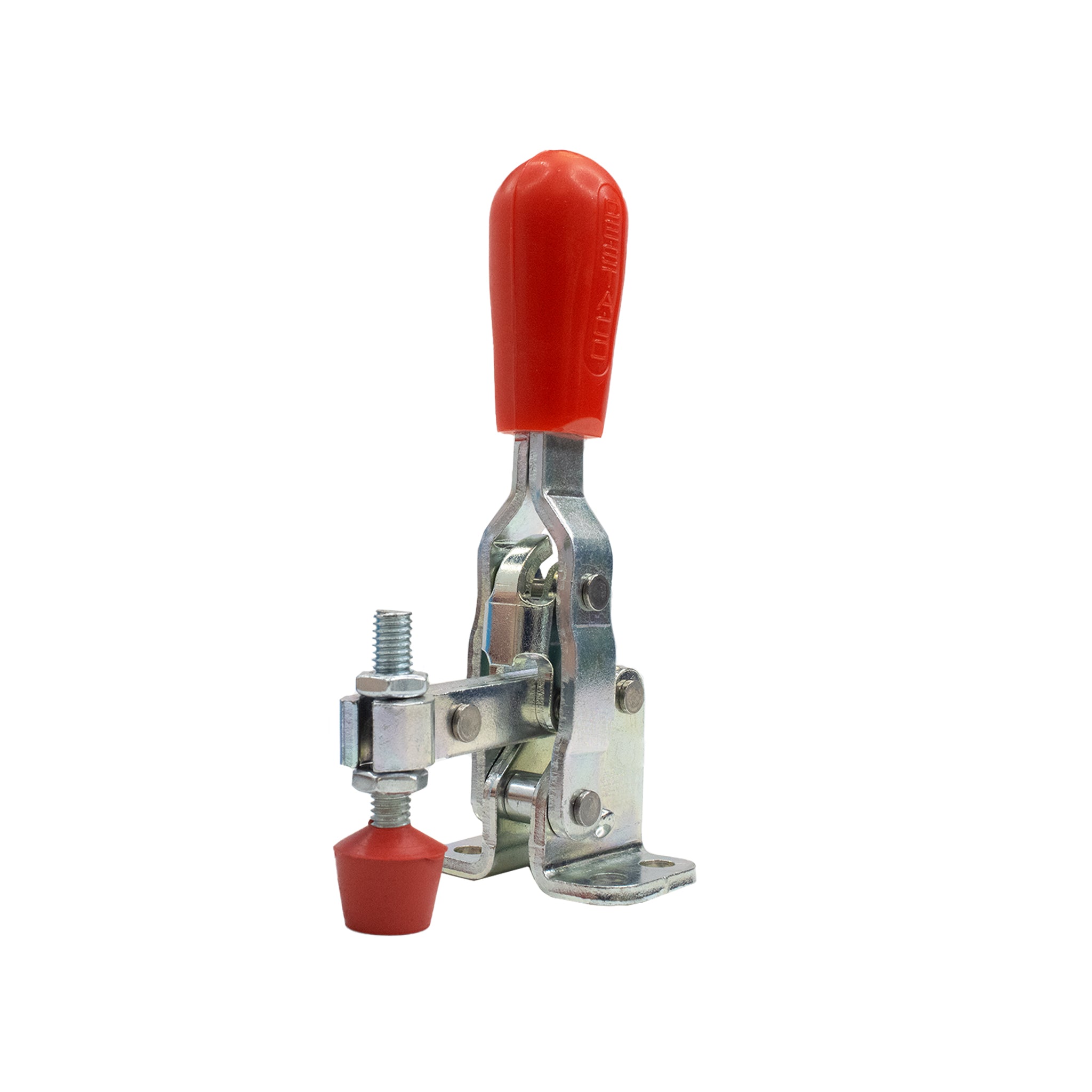

Destaco 202 | Vertical Hold-Down Toggle Locking Clamp

Product Details

SKU

202

Vendor
Inventory
Original price was: $21.32.Current price is: $18.48.

Out of stock

Shipping Calculated at checkout

Description

202 Vertical Hold-Down Toggle Locking Clamp

Top Selling Manual Toggle Clamp – 202 Series
Includes neoprene spindle and ergonomic handle grip
Maximum Holding Capacity (N): 890
Maximum Holding Capacity (lbsf): 200
Clamp Arm Length (mm): 33.3
Clamp Arm Length (in): 2.310
Height Under Clamp Arm (mm): 23.6
Height Under Clamp Arm (in): 0.930
Clamp Bar Opening (+10°) (degrees): 105
Handle Opening (+10°): 65
Standard Material: Steel
Toggle Lock Plus: No
Accommodates Workpiece Variation: No
Base Mounting Style: Flange
Clamp Arm Style: Solid Bar
Handle: Vertical
Service Environment: Normal
Duty Cycle: 1
Product Type: Standard
Weight: 0.15kg [0.33lbs]
Handle Moves: 64°
Bar Opens: 104°

Application: Welding: Poor/Low, Assembly: Excellent/High, Checking Fixtures: Excellent/High, Machining: Not Recommended, Wood-Working: Excellent/High, Closures: Excellent/High, Food Processing: Fair/Medium

Specifications

Product Type:
Clamp
