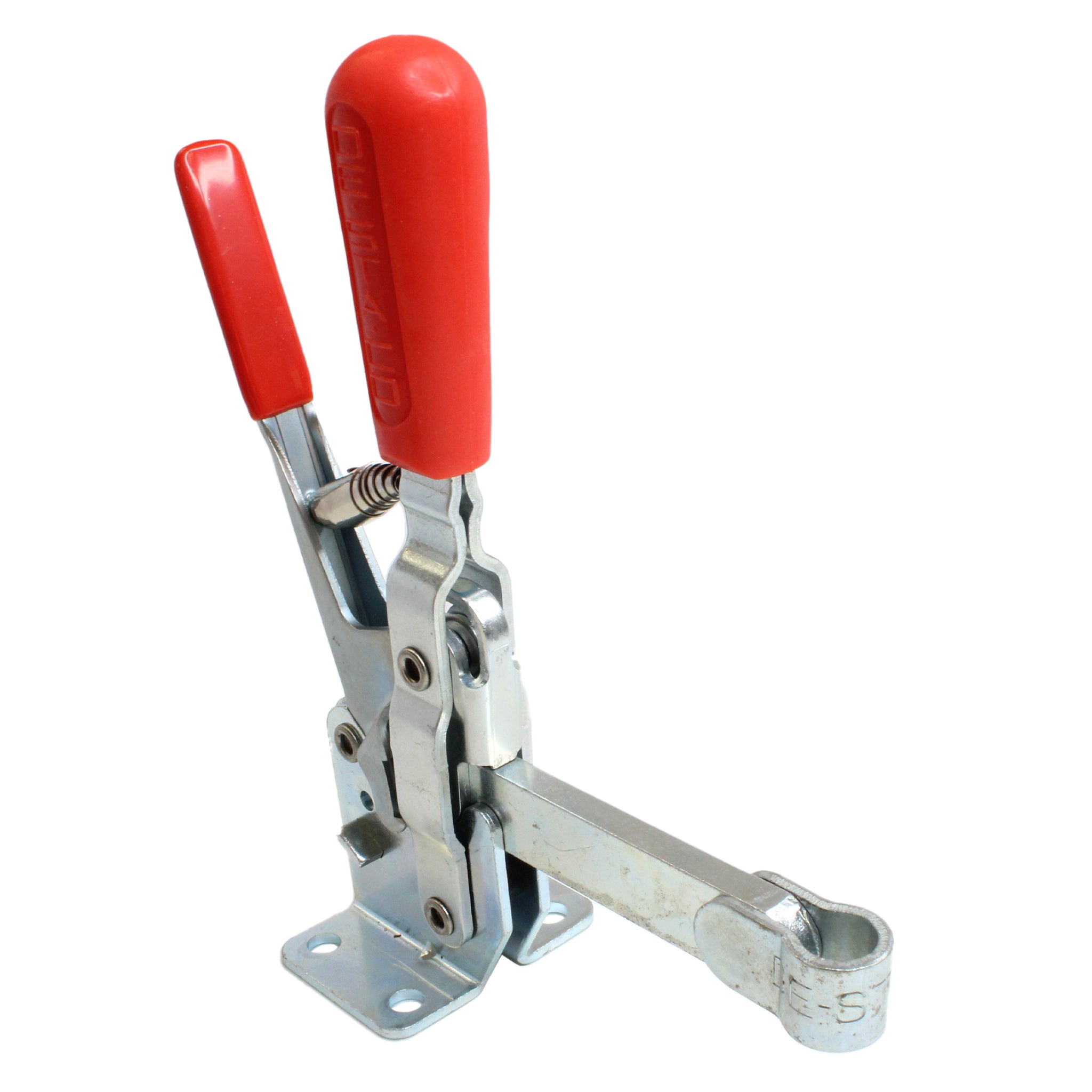

Destaco 210-SR Vertical Hold-Down Toggle Locking Clamp

Product Details

SKU

210-SR

Vendor
Inventory
Original price was: $100.10.Current price is: $89.42.

Out of stock

Shipping Calculated at checkout

Description

210-SR Vertical Hold-Down Toggle Locking Clamp

  • Model no.: 210-SR
  • Maximum Holding Capacity (N): 3,340
  • Maximum Holding Capacity (lbsf): 750
  • Clamp Arm Length (mm): 90.9
  • Clamp Arm Length (in): 3.580
  • Height Under Clamp Arm (mm): 42.4
  • Height Under Clamp Arm (in): 1.670
  • Clamp Bar Opening (+10°) (degrees): 103
  • Handle Opening (+10°): 58
  • Standard Material: Steel
  • Toggle Lock Plus: Yes
  • Accommodates Workpiece Variation No
  • Base Mounting Style: Flange
  • Clamp Arm Style: Solid Bar
  • Handle: Vertical
  • Service Environment: Normal
  • Duty Cycle: 2
  • Product Type: Standard
  • Model no.: 210-SR
  • Holding force: 3400: N
  • Angle: 105°
  • Weight (kg): 0.73 (1.61 lb)
Additional Feature:
  • Supplied with neoprene spindle
  • With Toggle Lock Plus
  • Ergonomic handle grip included
Application: Welding: Fair/Medium, Assembly: Excellent/High, Checking Fixtures: Excellent/High, Machining: Poor/Low, Wood-Working: Excellent/High, Closures: Fair/Medium, Food Processing: Fair/Medium

Specifications

Product Type:
Clamp
