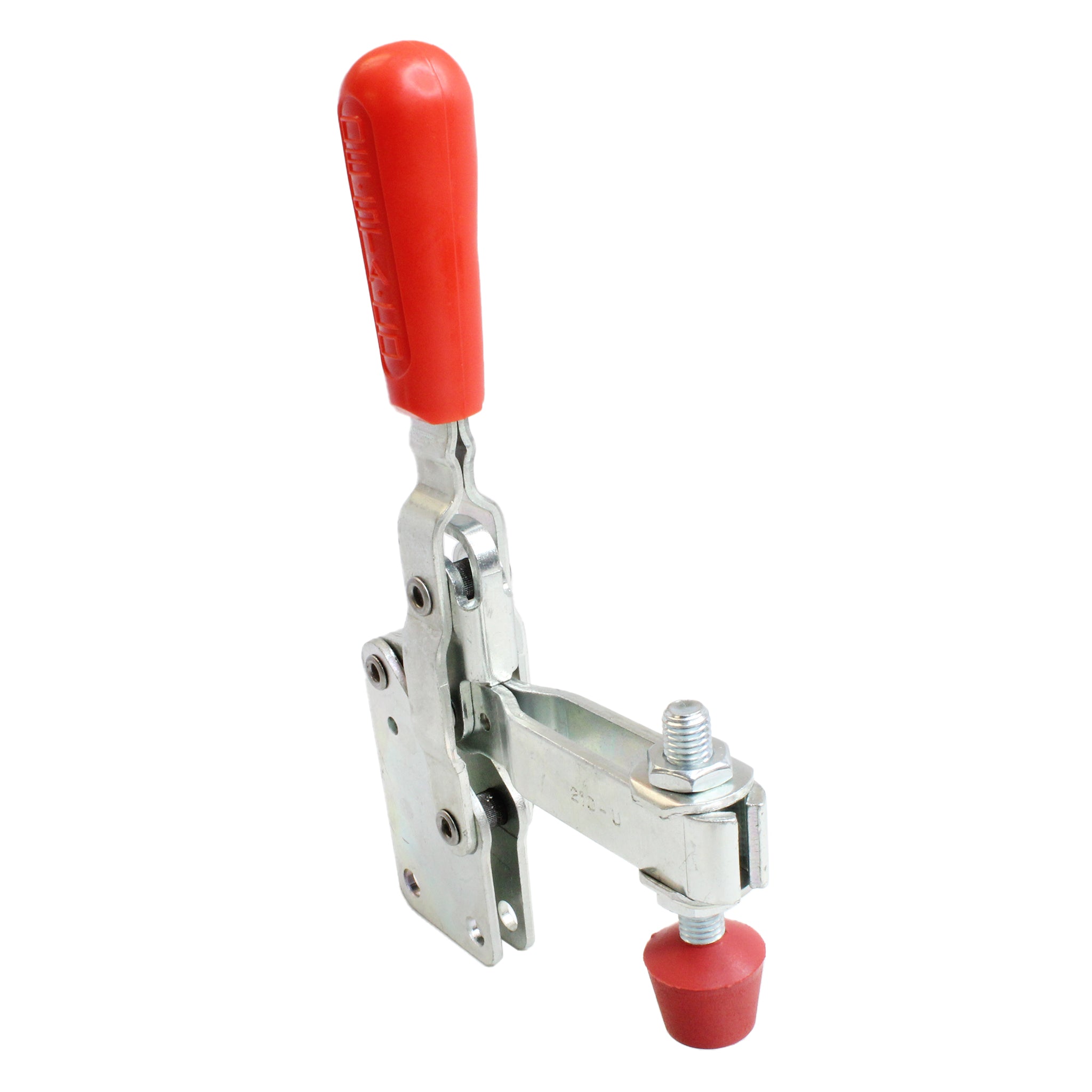

Destaco 210-UB Vertical Hold-Down Toggle Locking Clamp

Product Details

SKU

210-UB

Vendor
Inventory
Original price was: $59.37.Current price is: $51.46.

Out of stock

Shipping Calculated at checkout

Description

210-UB Vertical Hold-Down Toggle Locking Clamp

  • Model no.: 210-UB
  • Maximum Holding Capacity (N): 2,670
  • Maximum Holding Capacity (lbsf): 600
  • Clamp Arm Length (mm): 92.2
  • Clamp Arm Length (in): 3.650
  • Height Under Clamp Arm (mm): 55.6
  • Height Under Clamp Arm (in): 2.200
  • Clamp Bar Opening (+10°) (degrees): 103
  • Handle Opening (+10°): 58
  • Standard Material: Steel
  • Toggle Lock Plus: No
  • Accommodates Workpiece Variation: No
  • Base Mounting Style: Straight
  • Clamp Arm Style: U-Bar
  • Handle: Vertical
  • Service Environment: Normal
  • Duty Cycle: 2
  • Product Type: Standard
  • Holding Force: 2800: N
  • Angle: 105°
  • Standard Equipment: 240208-M
  • Weight (kg): 0.59 (1.30 lb)
Additional Features:
  • Supplied with neoprene spindle.
  • Ergonomic handle grip included
Application: Welding: Fair/Medium, Assembly: Excellent/High, Checking Fixtures: Excellent/High, Machining: Poor/Low, Wood-Working: Excellent/High, Closures: Fair/Medium, Food Processing: Fair/Medium

Specifications

Product Type:
Clamp
