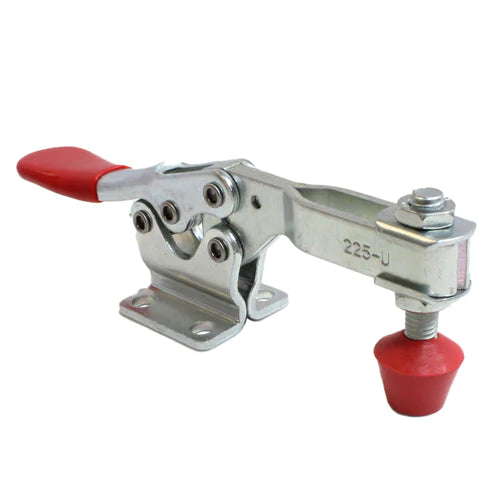

Destaco 225-U | Horizontal Hold-Down Toggle Locking Clamp

Product Details

SKU

225-U

Vendor
Inventory
Original price was: $24.01.Current price is: $20.81.

Out of stock

Shipping Calculated at checkout

Description

225-U Vertical Hold-Down Toggle Locking Clamp

Model no.: 225-U
Maxmum Holding Capacity (N): 2,220
Maximum Holding Capacity (lbsf): 500
Clamp Arm Length (mm): 68.3
Clamp Arm Length (in): 2.690
Height Under Clamp Arm (mm): 33.3
Height Under Clamp Arm (in): 1.310
Clamp Bar Opening (+10°) (degrees): 92
Handle Opening (+10°): 70
Standard Material: Steel
Toggle Lock Plus: No
Accomodates Workpiece Variation: No
Base Mounting Style: Flange
Clamp Arm Style: U-Bar
Handle: Horizonal
Service Environment: Normal
Duty Cycle: 2
Product Type: Standard
Holding Force: 2200 :N
Angle: 90°
Standard Equipment: 225208-M
Weight (kg): 0.25 (0.55 lb)

Additional Features:
Clamp supplied with neoprene spindle
Low profile

Application: Welding: Fair/Medium, Assembly: Excellent/High, Checking Fixtures: Excellent/High, Machining: Poor/Low, Wood-Working: Excellent/High, Closures: Excellent/High, Food Processing: Fair/Medium

Specifications

Product Type:
Clamp
