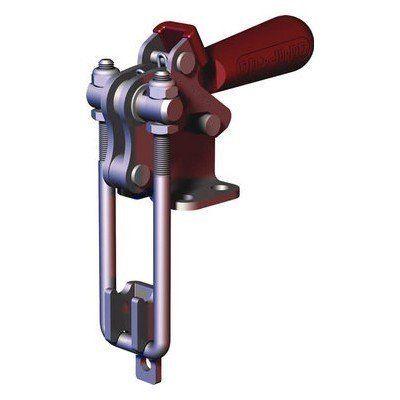

Destaco 334-R Vertical Pull Action Latch Clamp

Product Details

SKU

334-R

Vendor
Inventory
Original price was: $76.45.Current price is: $68.30.

Out of stock

Shipping Calculated at checkout

Description

334-R Pull-Action Latch Clamp

•Model No.: 334-R
•Maximum Holding Capacity (N): 4,450
•Maximum Holding Capacity (lbsf): 1,000
•Drawing Movement (mm): 51.7
•Drawing Movement (in): 2.040
•Hook Adjustable Range (mm): 19.3
•Max Hook Adjustment (in): 0.860
•Ef:Af Exerting Force: Applied Force ((pushing/pulling)): 31:1
•Standard Material: Steel
•Toggle Lock Plus: Yes
•Base Mounting Style: Flange
•Drawing Movement (mm): 51.7
•Hook Type: U-Hook (Vertical)
•Latch Plate: 334101
•Latch Plate Supplied?: Yes
•Replacement Hook Assembly: 334215
•Product Type: Standard
•Weight: 0.27kg (0.60lbs)

Additional Features:

•The clamp is mounted perpendicular to the latch surface
•Ideal for latching applications on molds, doors, lids, access covers, drums, containers, vessels

Specifications

Product Type:
Clamp
