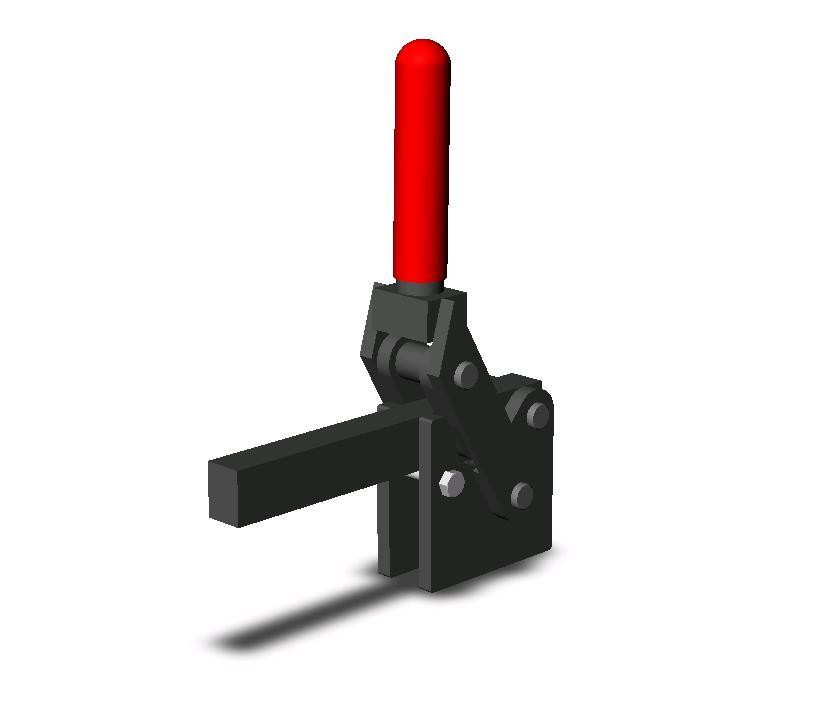

Destaco 548 | Vertical Hold-Down Toggle Locking Clamp

Product Details

SKU

548

Vendor
Inventory
$211.51

Out of stock

Shipping Calculated at checkout

Description

Features and Specifications: 548 Vertical Hold-Down Toggle Locking Clamp

Large bar guides for greater lateral support
Hardened steel bushings and pins for long life
Replaceable pins
Forged hold down bar can be cut, machined, or welded
Bar opens 199 degrees to clear work area
Model no.: 548
Maximum Holding Capacity (N): 11,100
Maximum Holding Capacity (lbsf): 2,500
Clamp Arm Length (mm): 108.0
Clamp Arm Length (in): 4.250
Height Under Clamp Arm (mm): 56.9
Height Under Clamp Arm (in): 2.240
Clamp Bar Opening (+10°) (degrees): 199
Handle Opening (+10°): 129
Available: Yes
Standard Material: Steel
Toggle Lock Plus: No
Accommodates Workpiece Variation: No
Base Mounting Style: Straight
Clamp Arm Style: Solid Bar
Handle: Vertical
Service Environment: Harsh/Dirty
Application-Welding: Excellent/High
Application-Assembly: Excellent/High
Application-Checking Fixtures: Excellent/High
Application-Machining: Poor/Low
Application-Wood-Working: Poor/Low
Application-Closures: Poor/Low
Application-Food Processing: Not Recommended
Duty Cycle: 3
Product Type: Heavy Duty
Weight (kg): 2.40
Weight (lb): 5.29
holding force: 11000: N
angle +10: 199°

Specifications

Product Type:
Clamp
