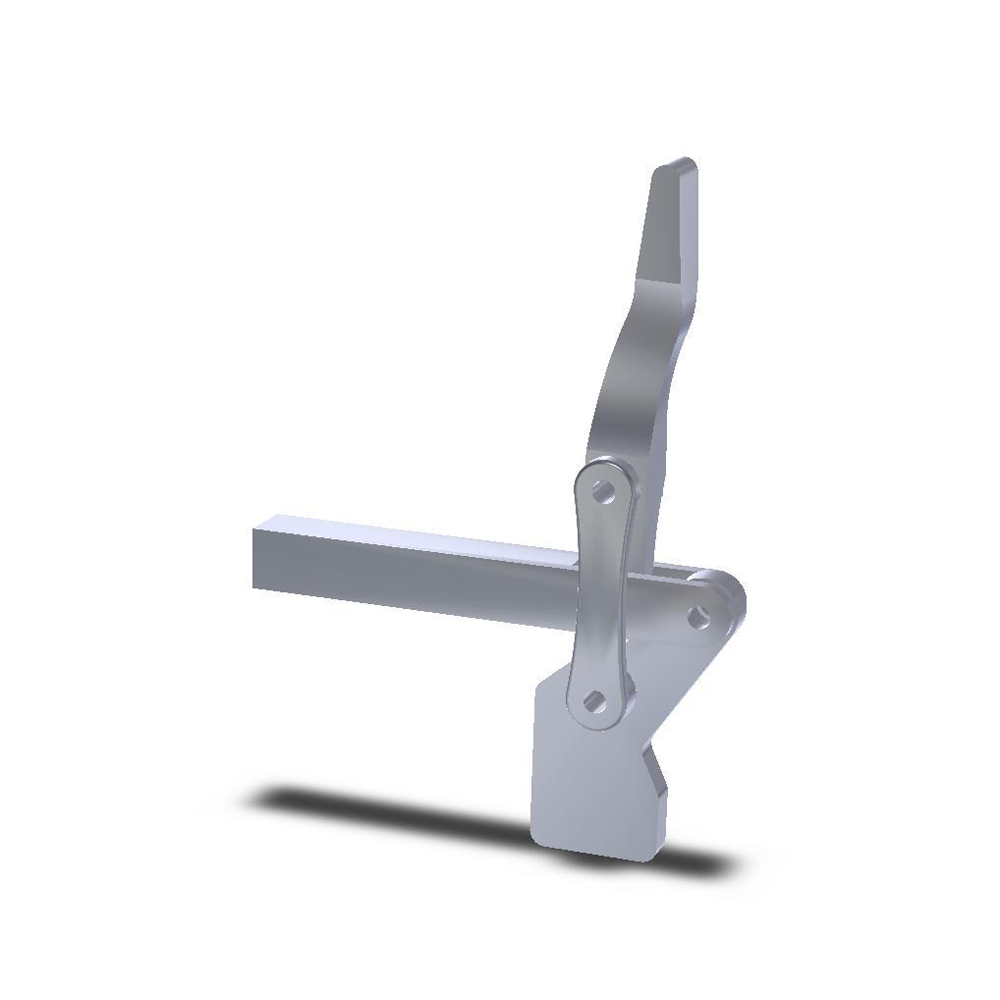

Destaco 558 Vertical Hold-Down Toggle Locking Clamp

Product Details




Out of stock

Shipping Calculated at checkout


Features and Specifications: 558 Vertical Hold-Down Toggle Locking Clamp

•Model No.: 558
•Maxmum Holding Capacity (N): 11,100
•Maximum Holding Capacity (lbsf): 2,500
•Clamp Arm Length (mm): 124.7
•Clamp Arm Length (in): 4.910
•Height Under Clamp Arm (mm): 96.3
•Height Under Clamp Arm (in): 3.790
•Clamp Bar Opening (+10°) (degrees): 192
•Handle Opening (+10°): 64
•Standard Material: Forged alloy steel
•Toggle Lock Plus: No
•Accomodates Workpiece Variation: No
•Base Mounting Style: Straight
•Clamp Arm Style: Solid Bar
•Handle: Vertical
•Service Environment: Normal
•Duty Cycle: 3
•Product Type: Heavy Duty
•Holding Force: 11000: N
•Angle +10: 166°
•Weight (kg): 2.24 (4.94 lb)

Applications: Welding: Excellent/High, Assembly: Excellent/High, Checking Fixtures: Poor/Low, Machining: Fair/Medium, Wood-Working: Poor/Low, Closures: Poor/Low, Food Processing: Not Recommended

Addtional Infomation:

•Forged alloy steel handle and links for rugged service
•Hardened steel pins and bushings
•Solid bar clamp arm may be modified to suit application requirements
•Bar opens 192 degrees to clear work area
