Destaco 9522-2R Pneumatic Swing Clamp Right Handed

Product Details

SKU

9522-2R

Vendor
Inventory
Original price was: $556.25.Current price is: $519.16.

Out of stock

Shipping Calculated at checkout

Description

9522-2R Pneumatic Swing Clamp Right Handed

• Stroke (mm): 13.0
• Stroke (in): 0.500
• Clamping Force @ 5Bar[72Psi] (N): 150
• Clamping Force @ 5Bar[72Psi] (lbf.): 34
• Mount Block: Side flange, tapped hole, standard
• Replacement Seal Kit: 952292
• Foot Mount Kit: 952260
• Tapped Hole Mount Kit: 952261
• Standard Mount Kit: 952262
• Swing Direction: Right Hand
• Air Port size: M5
• Air Consumption (per double stroke at 5 bar) (dm²): 0.100
• Air Consumption (per double stroke at 7 psi) (in²): 0.004
• Stroke during rotation (mm): 0.0
• Stroke during rotation (in): 0.00
• Vertical clamp stroke (mm): 13.0
• Vertical clamp stroke (in): 0.50
• Weight: [0.68 lb] [0.31 kg]
• Bore Size: 22mm

Applications: Assembly, Welding, Light machining

Additional Information:

Lightweight Right Handle
Unique design allows clamp arm to swing 90° on a horizontal plane before moving downward on its clamping stroke
Shielded piston rod for protection from weld spatter
Optional mounting accessories for side flange or tapped mounting

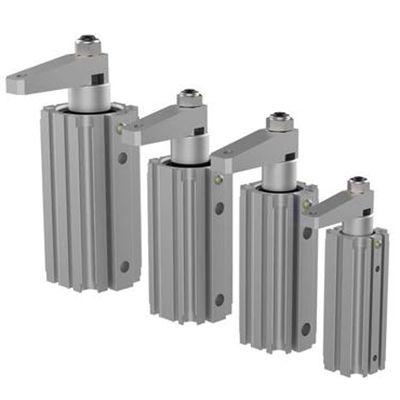

Available in four bore sizes, clamping arms sold separately

Specifications

Product Type:
Clamp
