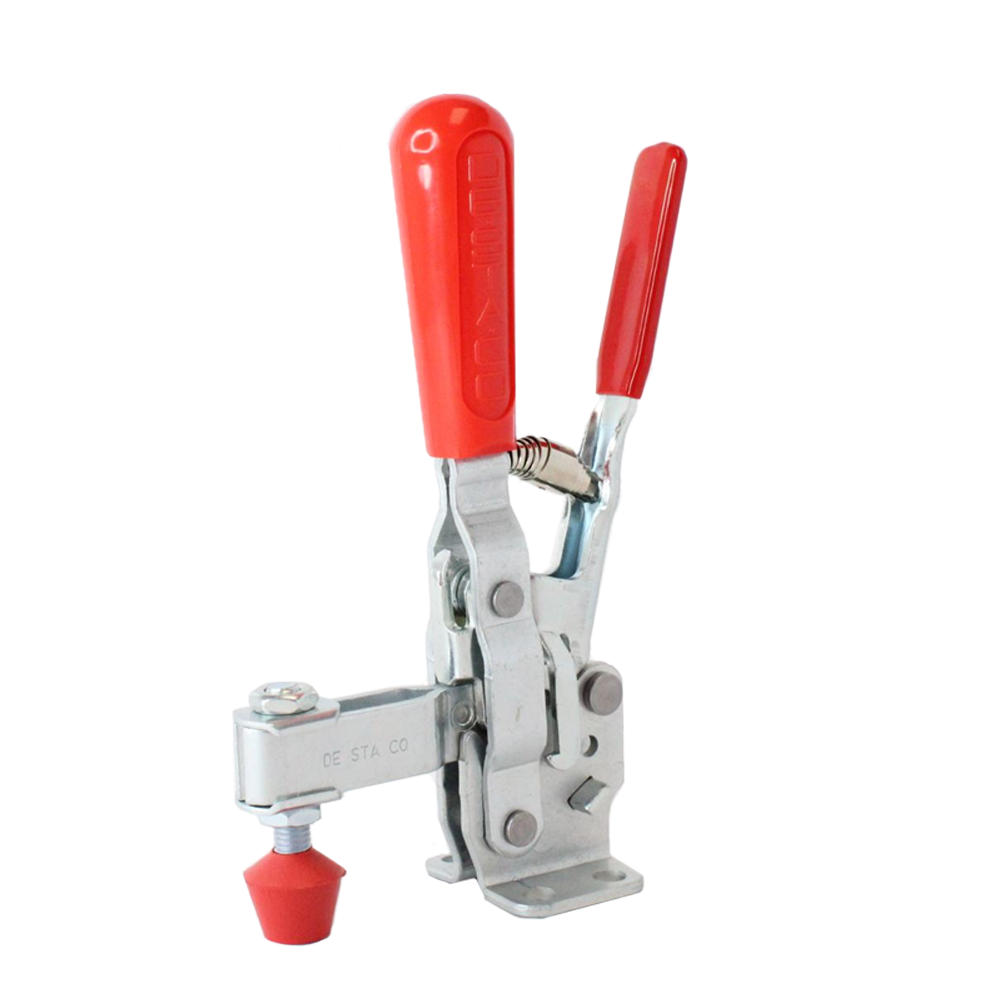

Destaco 207-UR Vertical Hold-Down Toggle Locking Clamp

Product Details

SKU

207-UR

Vendor
Inventory
Original price was: $65.31.Current price is: $58.34.

Out of stock

Shipping Calculated at checkout

Description

207-UR Vertical Hold-Down Toggle Locking Clamp

  • Model no.: 207-UR
  • Maximum Holding Capacity (N): 1,670
  • Maximum Holding Capacity (lbsf): 375
  • Clamp Arm Length (mm): 53.1
  • Clamp Arm Length (in): 2.140
  • Height Under Clamp Arm (mm): 31.8
  • Height Under Clamp Arm (in): 1.250
  • Clamp Bar Opening (+10°) (degrees): 99
  • Handle Opening (+10°): 57
  • Standard Material: Steel
  • Toggle Lock Plus: Yes
  • Accommodates Workpiece Variation: No
  • Base Mounting Style: Flange
  • Clamp Arm Style: U-Bar
  • Handle: Vertical
  • Service Environment: Normal
  • Duty Cycle: 2
  • Product Type: Standard
  • holding force: 1700: N
  • angle: 100°
  • standard equipment: 225208-M
  • Weight (kg): 0.45
  • Weight (lb): 0.99
Additional Features:
  • Supplied with neoprene spindle
  • With Toggle Lock Plus
  • Ergonomic handle grip included
Application: Welding: Poor/Low, Application-Checking Fixtures: Excellent/High, Machining: Poor/Low, Wood-Working: Excellent/High, Closures: Excellent/High, Food Processing: Fair/Medium

Specifications

Product Type:
Clamp
