Destaco 870 Pneumatic Heavy Duty Action Clamp

Product Details

SKU

870-2

Vendor
Inventory
$1,118.26

Out of stock

Shipping Calculated at checkout

Description

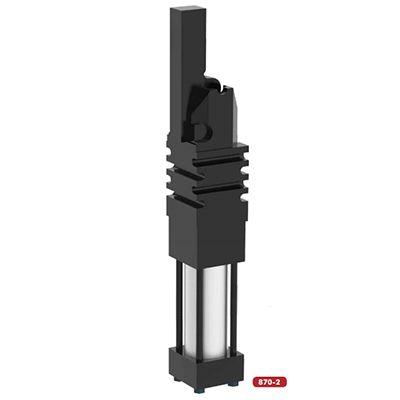

870-2 Clamping Arm in Vertical Position

870 Series Pneumatic Heavy Duty Action Clamp
Accommodates inconsistent workpiece thicknesses, up to 0.18″
Cylinder Bore: 1.50″
Opening Angle (deg): 112
Holding Torque (Max) (Nm): 260
Holding Torque (Max) (ft-lb): 192
Cylinder Bore (mm): 38.1
Cylinder Bore (in): 1.5
Clamping Arm Torque At 5 Bar (Nm): 60
Clamping Arm Torque At 5 Bar (ft-lb): 44
Port Size: G 1/8
Clamp Arm Style: Center
Configuration: Vertical Clamp Arm
Product Type: Power Clamp
Air Consumption per double stroke at 5 bar (dm²): 0.95
Air Consumption per double stroke at 72 psi (ft²): 0.03
1/4″ NPT
Weight: [3.00 kg] [6.60 lb]

Specifications

Product Type:
Clamp
